Temperature Controlled Units

RAP t2

ulds_TCC_tab1

ulds_TCC_tab1

Factsheet

IATA codeRAP
Loadable333 / 343 / 77W
Usable loading area253 x 206 cm / 100 x 81 in
Max. height142 cm / 56 in
Tare weight450 kg / 992 lbs
Max. gross weight4626 kg / 10198 lbs
Dry ice capacity300 kg / 660 lbs
Temperature range-20 °C to +20 °C / -4 °F to +68 °F

RKN t2

ulds_TCC_tab2

ulds_TCC_tab2

Factsheet

IATA codeRKN
Loadable333 / 343 / 77W
Usable loading area141 x 135 cm / 56 x 53 in
Max. height136 cm / 53 in
Tare weight265 kg / 584 lbs
Max. gross weight1587 kg / 3500 lbs
Dry ice capacity180 kg / 397 lbs
Temperature range-20 °C to +20 °C / -4 °F to +68 °F

RAP e2

ulds_TCC_tab3

ulds_TCC_tab3

Factsheet

IATA codeRAP
Loadable333 / 343 / 77W / truck
Usable loading area246 x 205 cm / 97 x 80 in
Max. height126 cm / 49 in
Tare weight1100 kg / 2425 lbs
Max. gross weight4626 kg / 10198 lbs
Recharging power supply100-240 V AC, 50-60 HZ
Maximum power consumption 1850 W
Maximum charging time 12 h
Temperature range0 °C to +25 °C / +32 °F to +77 °F

    RKN e1

    ulds_TCC_tab4

    ulds_TCC_tab4

    Factsheet

    IATA codeRKN
    Loadable333 / 343 / 77W / truck
    Usable loading area134 x 132 cm / 52 x 51 in
    Max. height131 cm / 51 in
    Tare weight635 kg / 1399 lbs
    Max. gross weight1587 kg / 3500 lbs
    Recharging power supply100-240 V AC, 50-60 Hz
    Maximum power consumption1850 W
    Maximum charging time8 h
    Temperature range0 °C to +20 °C / +32 °F to +68 °F

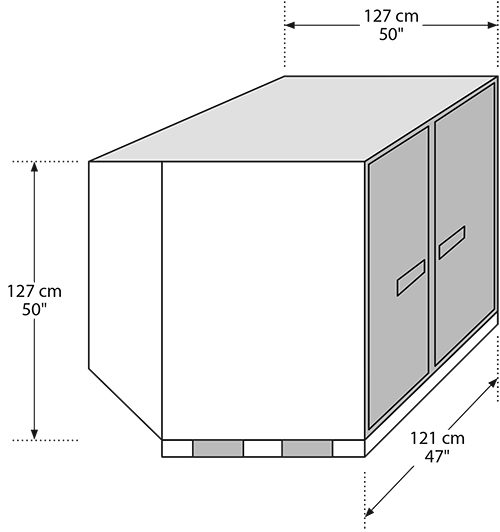

    RKN CSafe

    ulds_TCC_tab5

    ulds_TCC_tab5

    Factsheet

    IATA codeRKN
    Loadable333 / 343 / 77W / truck
    Usable loading area121 x 127 cm / 47 x 50 in
    Max. height127 cm / 50 in
    Tare weight646 kg / 1424 lbs
    Max. gross weight1587 kg / 3500 lbs
    Recharging power supply100-250 V AC, 50-60 Hz
    Maximum charging timeapprox. 6 h
    Temperature range+4 °C to +25 °C / +39 °F to +77 °F

    RKN DoKaSch

    ulds_TCC_tab6

    ulds_TCC_tab6

    Factsheet

    IATA codeRKN
    Loadable333 / 343 / 77W / truck
    Usable loading area126 x 130 cm/ 49 x 51 in
    Max. height122 cm / 48 in
    Tare weight670 kg / 1477 lbs
    Max. gross weight1587 kg / 3500 lbs
    Recharging power supply110 - 220 V AC, 50 - 60 Hz
    Maximum charging time approx. 6 h
    Temperature range+2 °C to +30 °C / +36 °F to +86 °F

    RAP DoKaSch

    ulds_TCC_tab7

    ulds_TCC_tab7

    Factsheet

    IATA codeRAP
    Loadable333 / 343 / 77W / truck
    Usable loading area246 x 202 cm / 97 x 79 in
    Max. height132 cm / 52 in
    Tare weight1140 kg / 2513 lbs
    Max. gross weight4626 kg / 10198 lbs
    Recharging power supply110 - 220 V AC, 50 - 60Hz (special cables needed)
    Maximum charging time approx. 6 h
    Temperature range+2 °C to +30 °C
    +36 °F to +86 °F

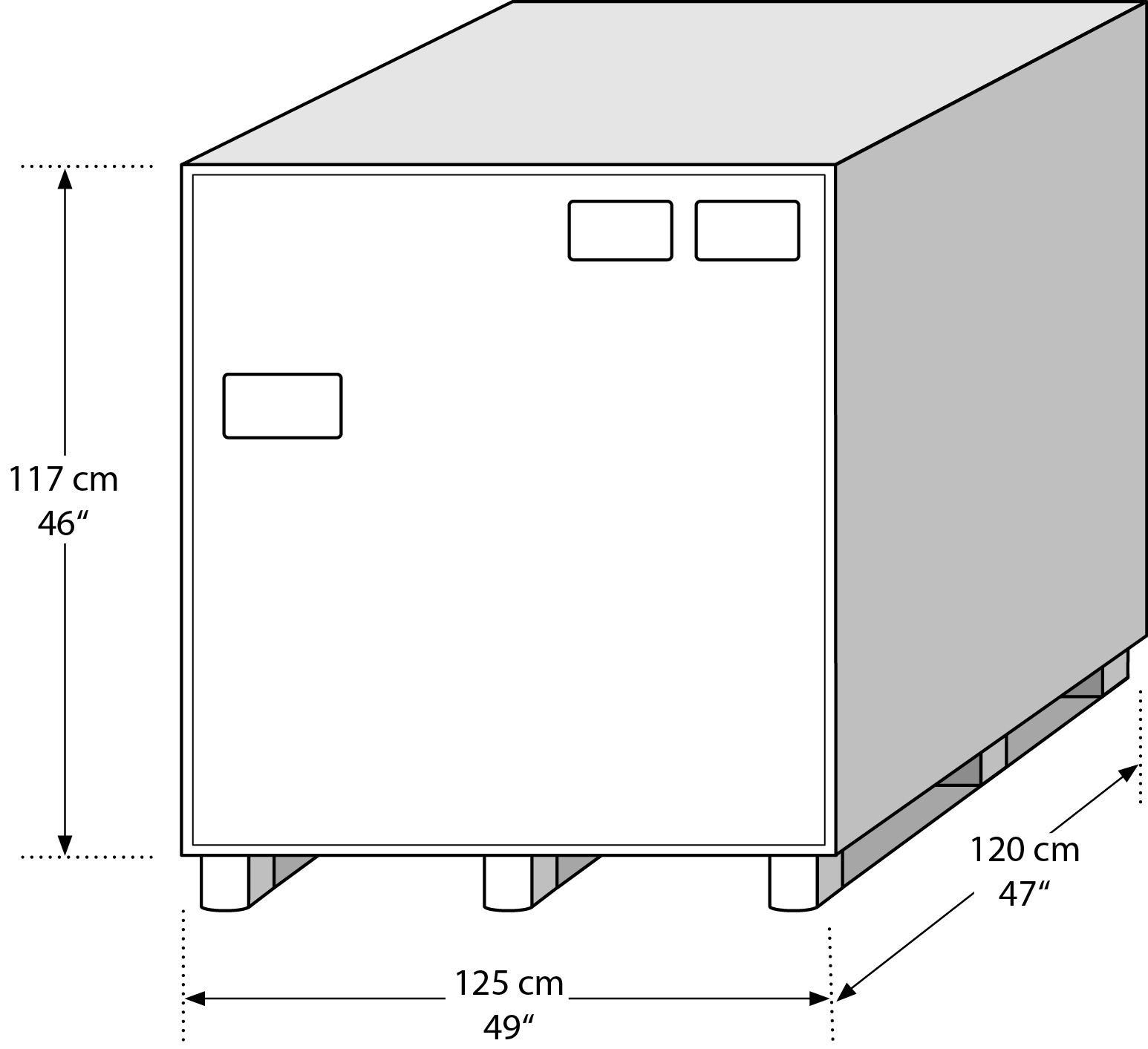

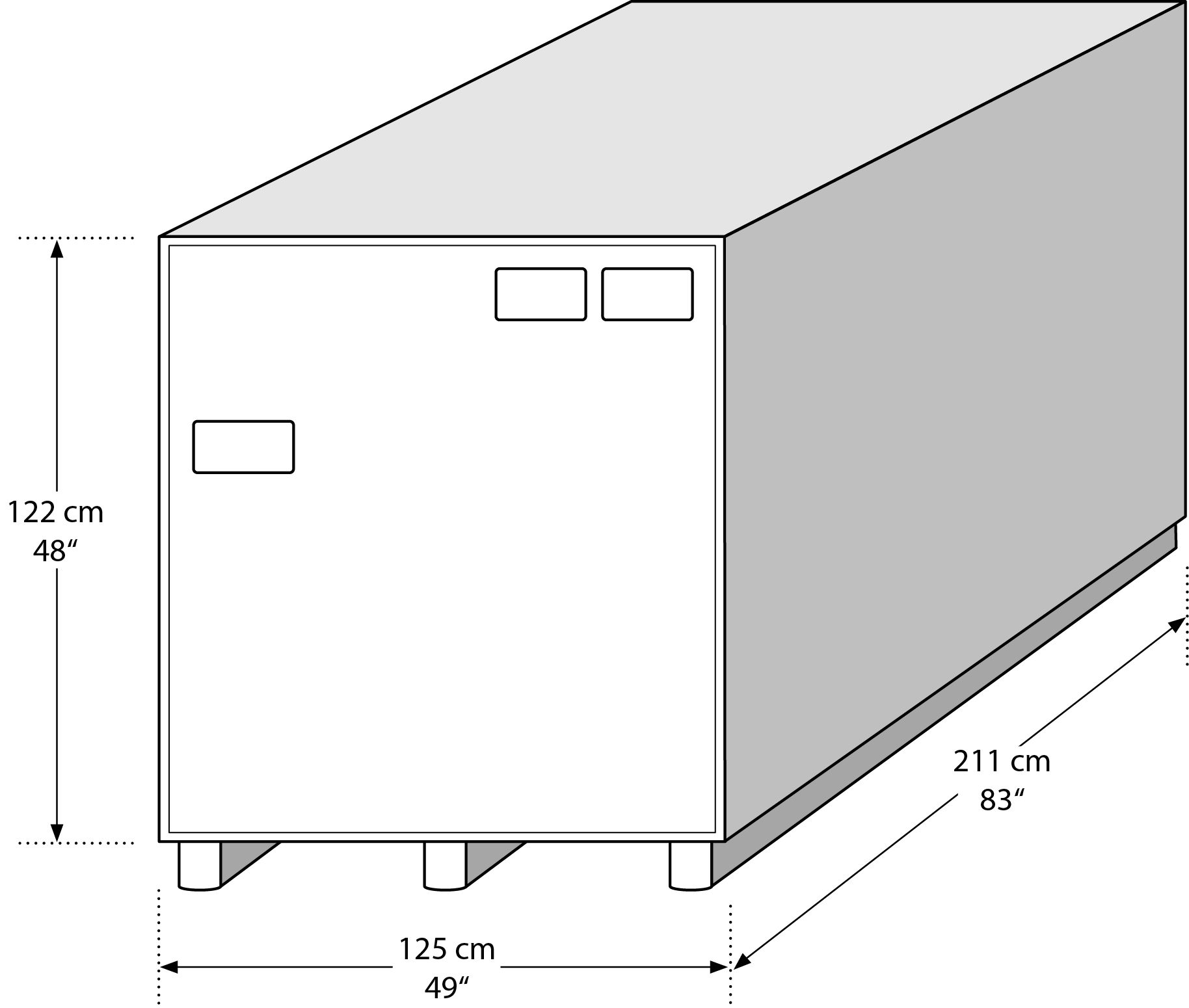

    ProofTainer

    ulds_TCC_tab8_ va-Q_tec

    va-Q_tec

    Factsheet



    ProofTainer Euro

    ProofTainer US

    ProofTainer 2 Euro

    ProofTainer 2 US
    IATA Code JYPS JYP4 JYP3 JYP3
    Ladebar auf 333 / 343 / 77W / LKW 333 / 343 / 77W / LKW 333 / 343 / 77W / LKW 333 / 343 / 77W / LKW
    Innere Ladedimensionen

    120 x 85 cm

    3 x 2 ft

    120 x 125 cm

    3 x 4 ft

    164 x 125 cm

    5 x 4 ft

    211 x 125 cm

    6 x 4 ft
    Maximale Höhe 117 cm / 3 ft 117 cm / 3 ft 122 cm / 4 ft 122 cm / 4 ft
    Leergewicht 440 kg / 970 lbs 578 kg / 1274 lbs 660 kg / 1455 lbs 800 kg / 1763 lbs
    Anzahl Paletten 1x 1x 2x 2x + lose
    Temperaturmessung installiert installiert installiert installiert

    RAP CSAFE

    ULD_CSAFE_RAP_TAB9

    CSAFE_RAP

    Factsheet

    IATA code RAP
    Loadable 333 / 343 / 77W / truck
    Usable loading area 248 x 208 cm / 98 x 82 in
    Max. height 130 cm / 51 in
    Tare weight 1213 kg / 2675 lbs
    Max. gross weight 4626 kg / 10198 lbs
    Recharging power supply 100-240 V AC, 50-60 Hz
    Maximum charging time approx. 10 h
    Temperature range +4 °C to +25 °C / +39 °F to +77 °F

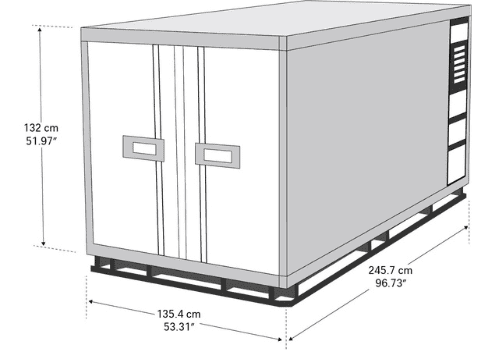

    RLP Releye

    ULD_ReleyeRLP_tab10

    ULD_ReleyeRLP_tab10

    Factsheet

    IATA codeRLP
    Loadable333 / 343 / 77W / truck
    Usable loading area247 x 135 cm / 97 x 55 in
    Max. height132 cm / 52 in
    Tare weight880 kg / 1940 lbs
    Max. gross weight3175 kg / 6999 lbs
    Recharging power supply100-240 V AC, 50-60 HZ
    Maximum charging time 11 h
    Temperature range+5 °C to +20 °C / +41 °F to +68 °F

    RAP Releye

    ULD_Releye_RAP_Tab11

    ULD_Releye_RAP_Tab11

    Factsheet

    IATA codeRAP
    Loadable333 / 343 / 77W / truck
    Usable loading area246 x 205 cm / 97 x 80 in
    Max. height132 cm / 52 in
    Tare weight1100 kg / 2425 lbs
    Max. gross weight4625 kg / 10196 lbs
    Recharging power supply100-240 V AC, 50-60 HZ
    Maximum power consumption 1850 W
    Maximum charging time 11 h
    Temperature range5 °C to +20 °C / +41 °F to +68 °F

    Sonoco Pegasus

    ulds_TCC_tab11

    Sonoco Themosafe Pegasus

    Factsheet

    IATA code AKP
    Loadable

    333 / 343 / 77W / truck
    Usable loading area

    124 x 115 cm

    49 x 45 in
    Max. height 123 cm / 48 in
    Tare weight 616 kg / 1358 lbs
    Max. gross weight

    1588 kg / 3500lbs
    Temperature range +2° C  to + 8°C
    +36° F to +46° F
    Performance

    140+ Hours (ISTA 7D)
    Telemetry device yes
    Technology Advanced Passive Solutions
